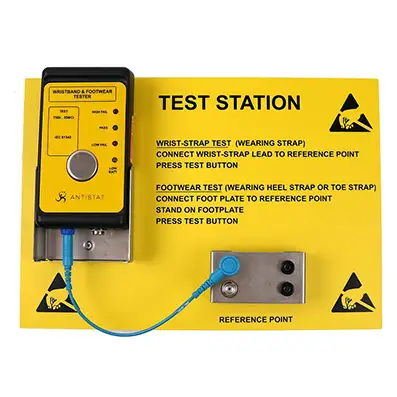

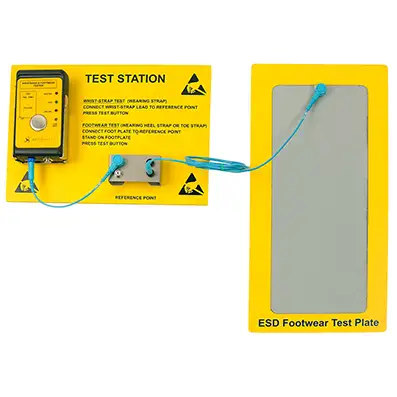

ESD TEST STATION – ESD FOOTWEAR & ESD WRIST STRAP TESTER
This complete ESD test station kit includes both and ESD wrist strap tester and an ESD footwear tester. Specifically developed to provide a quick and simple means of testing both ESD wrist straps and ESD footwear prior to entering an ESD protected area. Designed to measure both high and low fail and pass functions. Testing is achieved with a simple ‘one touch’ function.
Comes with:

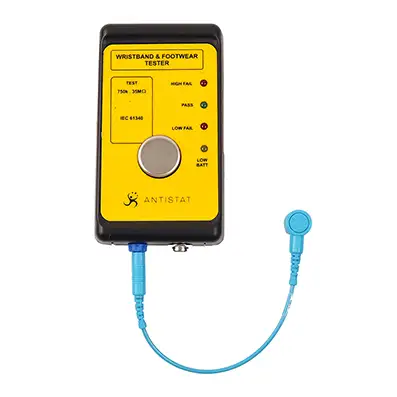

- 1 x ESD wrist strap tester
- 1 x wall mount

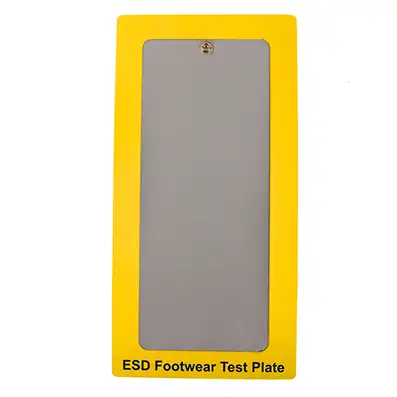

- 1 x ESD footwear checker footplate
- 1 x 6in straight lead
- 1 x 6ft straight lead
- 2 x crocodile clips
- 1 x 9v square battery
Includes a low battery indicator to ensure continuous use. CE approved, the station operates with a lower limit of 750kΩ ±10% and an upper limit of 35MΩ ±10%. Powered by a 9V alkaline battery, its compact size measures 129mm x 63mm x 25mm.
